Rotating flows over relief
Flow over boundary relief generates waves and changes the forces on the surrounding solid. Laboratory experiments allow the geometry and rotation to be varied independently, and give access to flow regimes that are expensive to simulate.
Rotating-fluid apparatus at ISTerre
Led by David Cébron, THEIA’s experimental programme moved from the original plan to use the CORIOLIS platform to a dedicated facility at ISTerre. The programme developed the WEBER rotating system, tank designs, rotation control, optical access and particle image velocimetry (PIV), which measures velocity in a plane from successive images of illuminated tracer particles.
The apparatus was developed at two working scales:
– mini-THEIA, approximately 50 cm across, provided a compact testbed for developing measurement procedures and investigating rotating flows over a physical rough bottom.
– The intermediate THEIA tank, approximately one metre across, mounted on WEBER, was used to develop rotation control, calibration and acquisition procedures, and for PIV spin-up experiments.

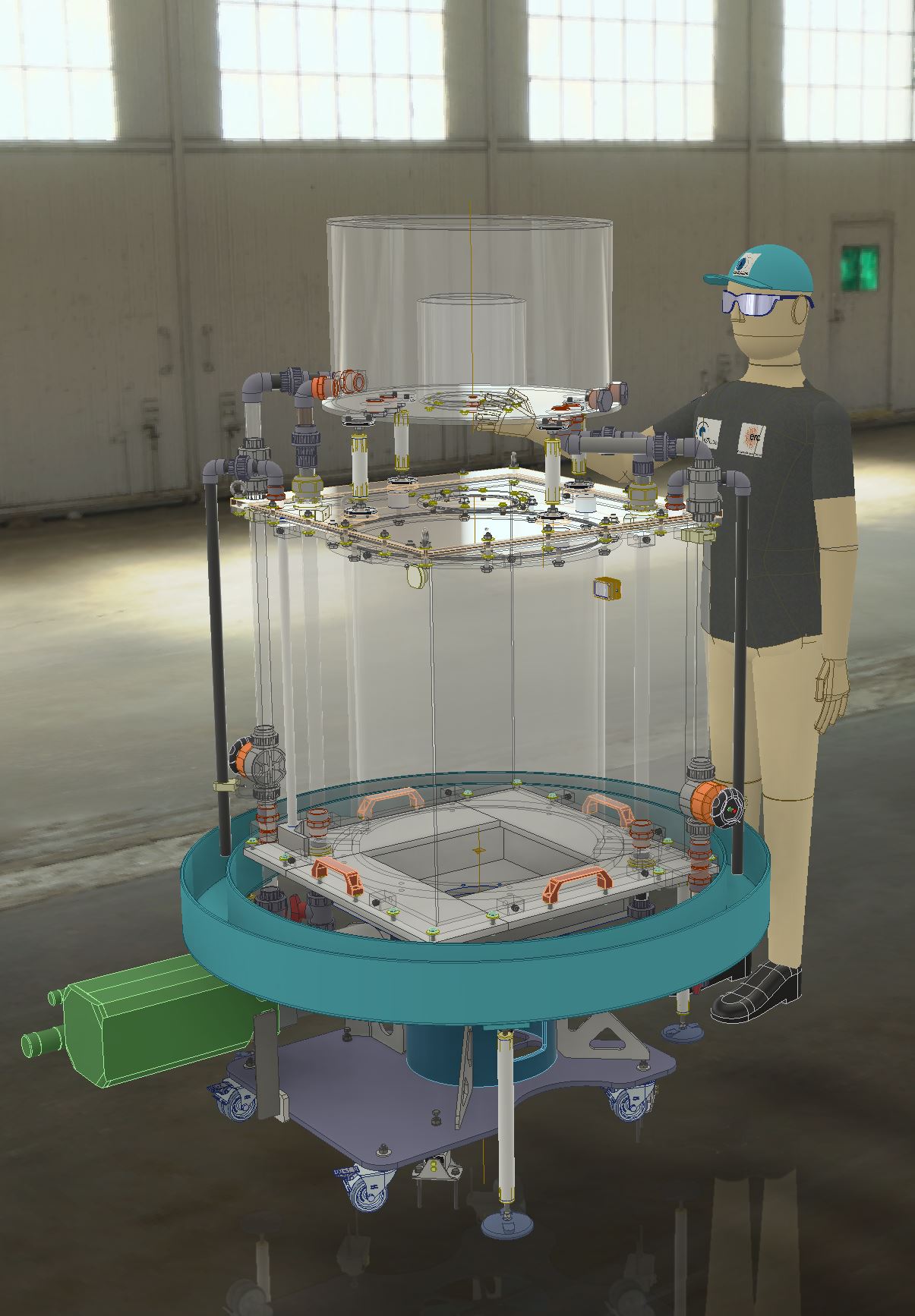

David Cébron and Max Solazzo jointly conceived and designed the THEIA and mini-THEIA experiments. Max Solazzo, a permanent CNRS engineer at ISTerre, carried out the CAD, mechanical construction and assembly.

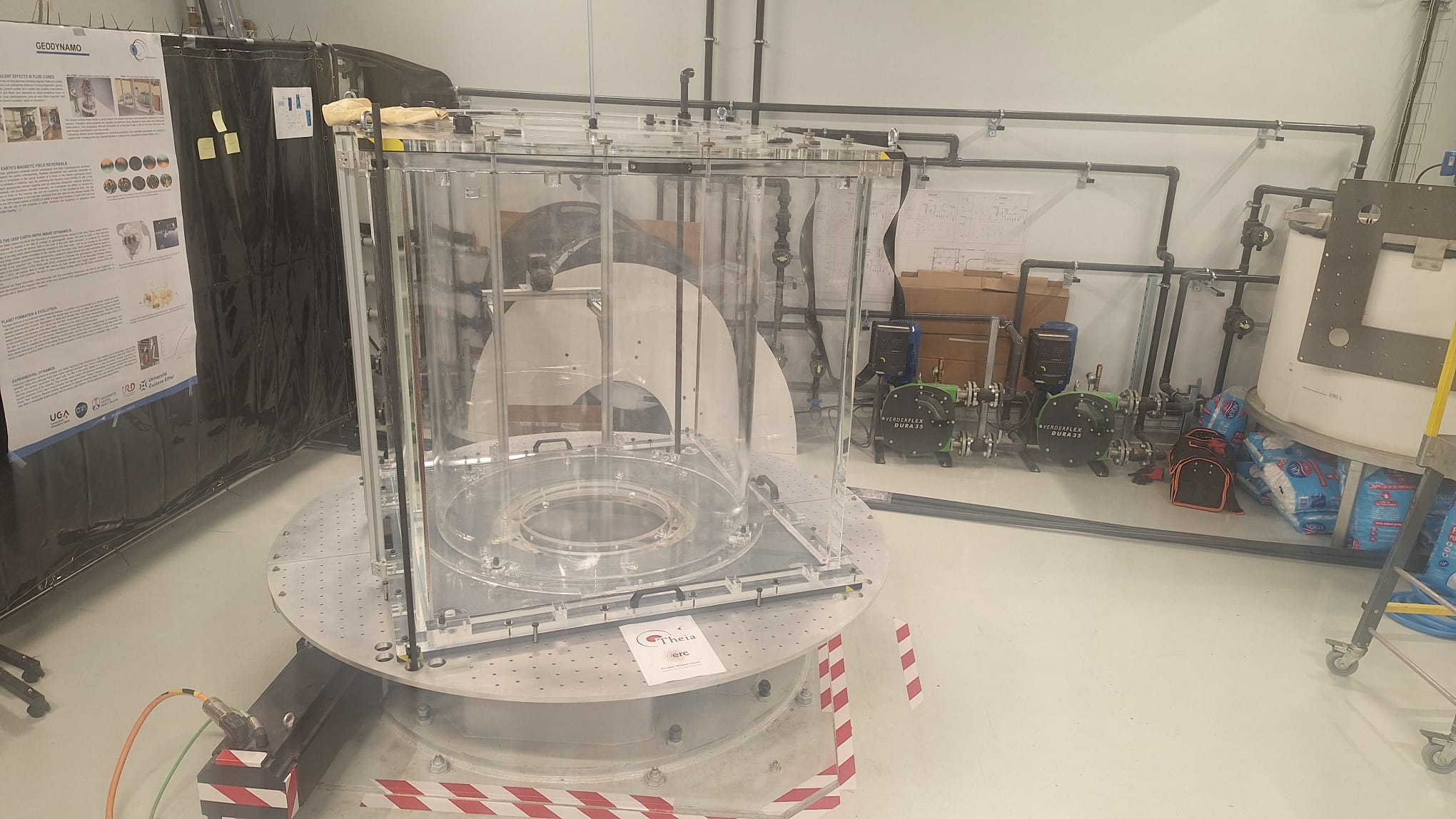

The gallery shows the one-metre tank on WEBER in daylight and under laser illumination, mini-THEIA’s rough bottom, and the contributions to mechanical design and assembly.
Spin-up and topographic coupling
After a change in the container’s rotation rate, the fluid adjusts through an exchange of angular momentum with the boundaries. Comparing this spin-up over smooth and rough bottoms helps isolate the contribution of relief. Baptiste Penlou developed PIV acquisition and analysis procedures for these comparisons in the intermediate tank, following earlier experimental work, including Samuel Payen’s contribution in 2025.

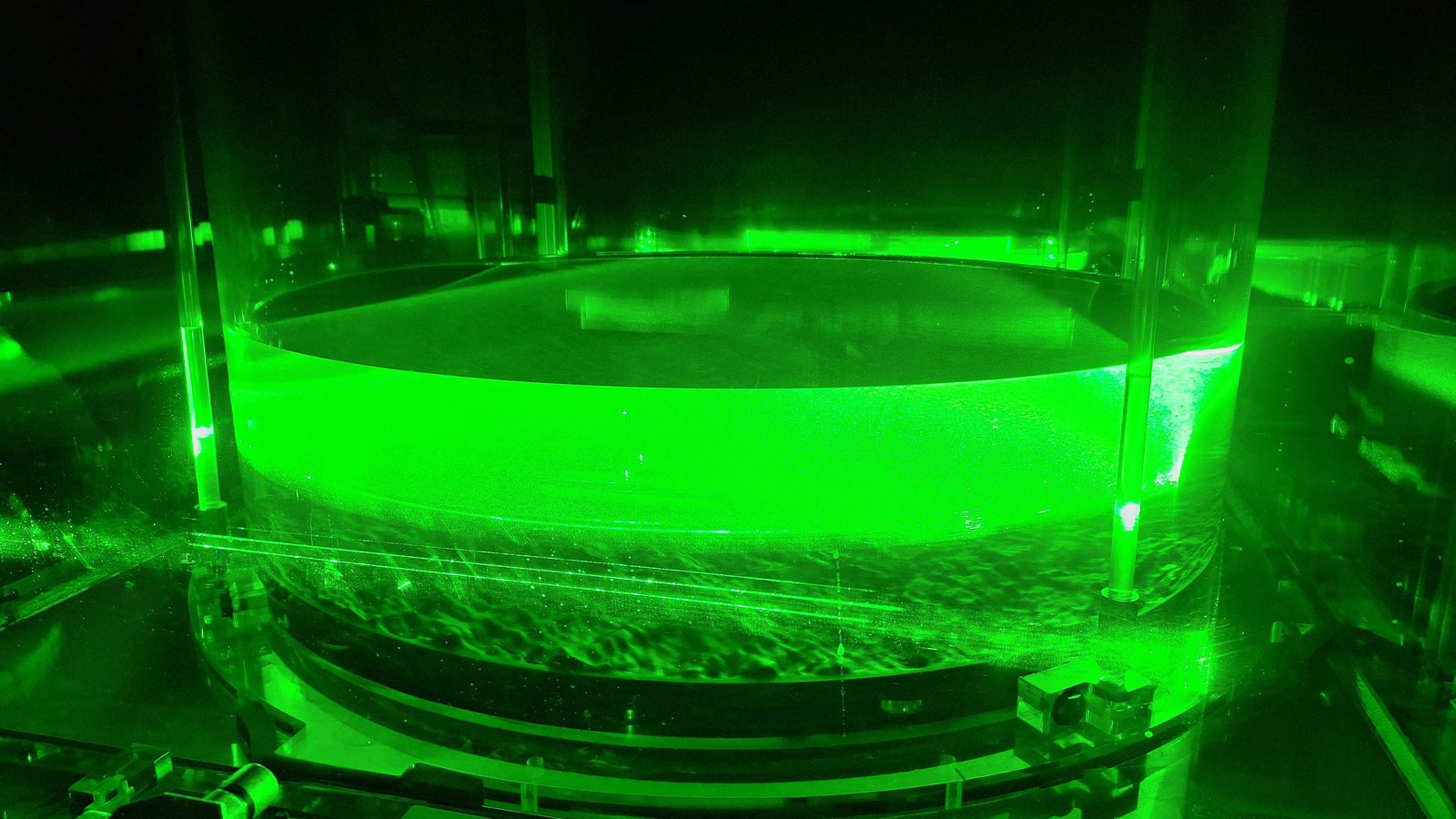

The photograph shows the laser illumination used for PIV, not a processed velocity field.
The overall spin-up rate and the evolution of the radial velocity profile describe different aspects of this adjustment. Their interpretation requires accounting for boundary friction, waves and measurement uncertainties. The smooth- and rough-bottom PIV measurements remained unpublished at the end of the ERC action. They are not presented here as quantitative validation of a universal drag law.
The Giraud et al. (2026) study compares theory and direct simulations with the spin-up measurements published by Burmann and Noir in 2018. Its experimental comparison concerns those earlier data, separate from the work in THEIA’s one-metre tank.
Acoustic measurements
Collaborative work on modal acoustic velocimetry for libration-driven flows used acoustic resonances in the gas-filled ZoRo spheroid. Acoustic measurements complement optical methods where particle imaging is difficult. The publisher’s correction accompanies the article.
See the project results, numerical methods, team contributions and gallery.
